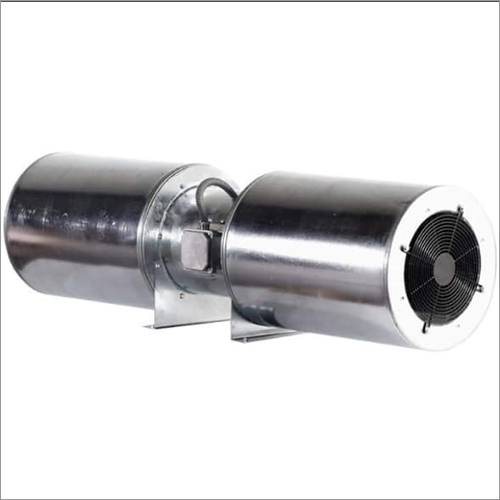

jet fan industrial

Procure the elite Jet Fan, masterfully engineered for industrial performance and reliability. As a champion in air movement technology, this Induced Draft Fan offers enlightened efficiency using electric power, with blades crafted from first-class cast iron to deliver enduring strength. Customized sizing ensures you receive optimum air management for any application. With competitive pricing tailored for Indian distributors, manufacturers, suppliers, and traders, trust in our one-year warranty for absolute peace of mind. Secure your advantage with the leader in industrial ventilation solutions.

Jet Fan Applications: Usage & Beneficiaries

The Jet Fan is meticulously designed for industrial purposes, primarily serving factories, warehouses, and heavy-duty environments. Its induced draft capability makes it exceptionally suitable for ventilation and air movement in confined or large spaces. Typically used by plant managers, facility operators, and maintenance teams, our Jet Fan helps maintain optimal working conditions and air quality, ensuring safety and productivity for all stakeholders involved.


Export Markets, Supply, and Pricing Policy for Jet Fans

Our Jet Fans enjoy broad demand across international and domestic markets, with India as the core supply hub. We maintain a robust supply ability to meet high-volume or custom-sized orders with timely deliveries. Adhering to a transparent sample policy, we provide sample models at the lowest price upon request. Our competitive rate structure and clear asking price allow distributors and bulk buyers to make confident procurement decisions.

FAQ's of Jet Fan:

Distance From Nozzle (m)	4	8	12	16	20	24	28	32	36	40	44	50
Flow Width (m)	1.6	3.3	4.9	6.7	8.4	10.0	11.8	13.5	15.2	17.0	18.5	20.8
Center Line Velocity (m/s)	MJT-355	4.4	2.4	1.6	1.4	1.2	1	0.5	0.25
MJT-400	5.3	2.9	2.0	1.5	1.2	1.0	0.9	0.65	0.45	0.26	0.12
MJT-450	6.5	4.5	3	2.4	2	1.8	1.4	1.2	1	0.8	0.6	0.2

Features

• Dual Use: For daily ventilation and smoke extraction in case of fire (300 C/120 min.)
• Symmetrical Aero-Dynamic blades for maximum thrust with low sound level
• Motors IP55 insulation class H (smoke extract); Motors IP55 insulation class F (CO-exhaust), according to EN 60034-5/IEC 85
• Casing manufactured from galvanized steel
• Conforming to EN 12101-3 (300 C for 120 mins / 2 hrs)
• Fan size 315, 355, 400 diameter

Technical Data

Jet Fan Model	Mode	Air Volume	Thrust	Noise Level	Motor	Motor Pole	Motor Protection	Phase	Insulation	Weight (Kg)
		CMH	N	dB(A) @ 3m	(KW)	Nos.				Kg
MJT-315UD	Normal	2325	6.5	50	0.18	4	IP55	3	H	60
Fire	4650	25	64	0.75	2
MJT-355UD	Normal	3500	11	52	0.37	4	IP55	3	H	75
Fire	7000	45	65	1.50	2
MJT-400UD	Normal	5250	20	54	0.40	4	IP55	3	H	90
Fire	10500	80	68	2.20	2
MJT-450UD	Normal	6750	26	55	0.55	4	IP55	3	H	100

Dimension

Model	A	B	C	D	E	F	G	H	I
MJT-315	320	420	340	290	630	1600	270	320	214
MJT-355	360	460	400	350	700	1800	300	350	234
MJT-400	405	505	440	390	800	2040	330	380	256
MJT-450	455	555	470	420	900	2270	350	400	262
